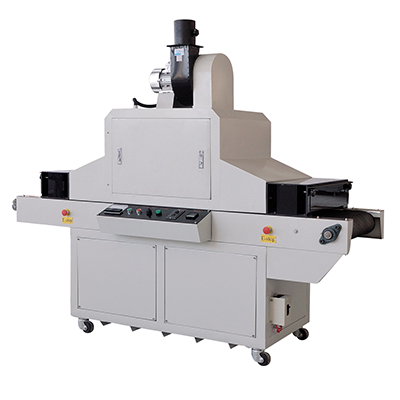

Description:
1. 1.Conveyor speed and substrate rotation speed adjustable.
2. Half light or full light adjustable, the distance between UV lamp and substrate adjustable.
3. The air exhauster is installed on the top to exhaust the heat in curing
chamber to cool down the system and extend the lamp lifetime.
4. High quality control parts, reliable quality and user friendly.
Tech-data:
|
Tech-data |
UV400 |
UV800 |
UV1000 |
|||
|
Max. Curing Size(w*h)mm |
400 x100 |
800 x100 |
1000x100 |
|||
|
Conveyor SpeedRange |
0-10m/min |
|||||
|
Speed Adjusting Mode |
electronic stepless mode |
|||||
|
Total Wattage |
6.4KW |
8.8KW |
13.5KW |
|||
|
Lamp Wattage |
5.6KW |
8KW |
12KW |
|||
|
Air Exhaust Fan Power Supply |
750W/1P/220V |
|||||
|
Conveyor Motor Power Supply |
60W/1P/220V |
90W/1P/220V |
120W/1P/220V |
|||
|
Power supply |
380V |
380V |
380V |
|||
|
|
|
|
|
|
|
|
