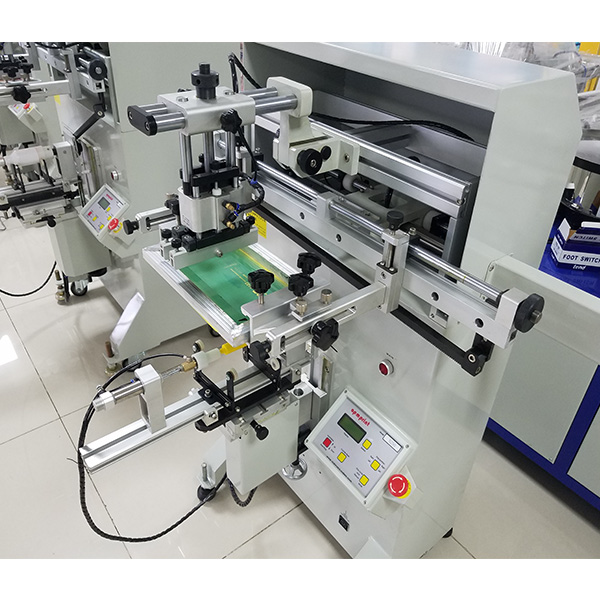

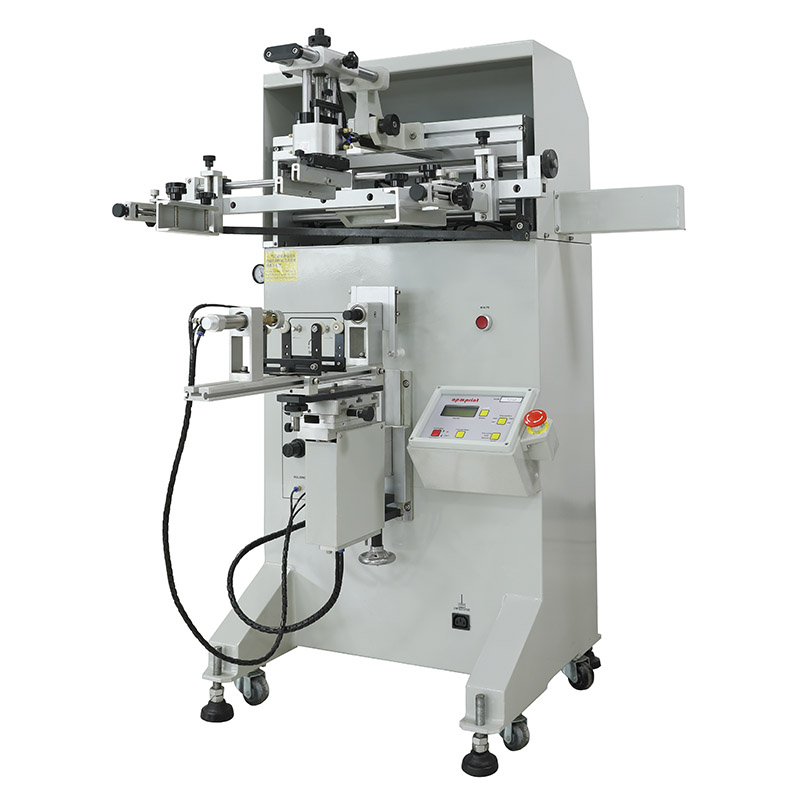

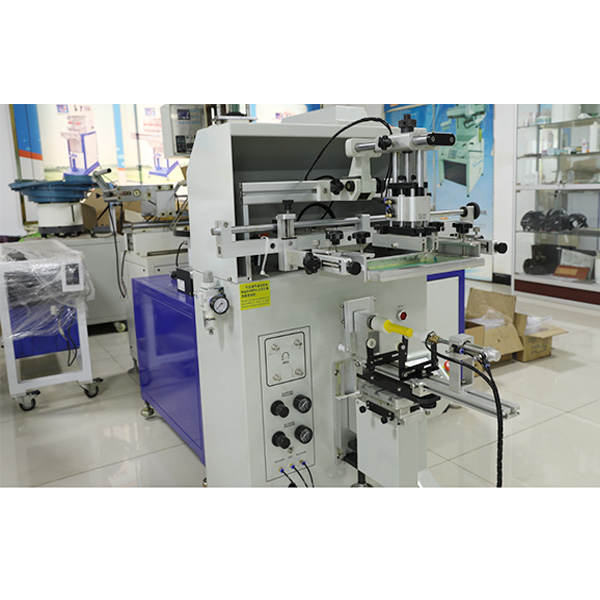

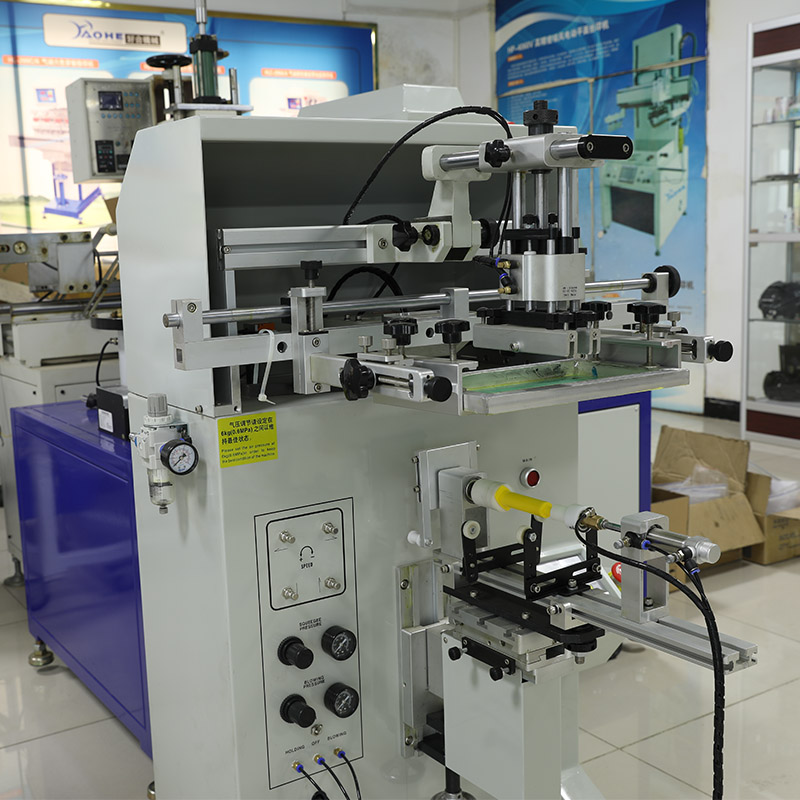

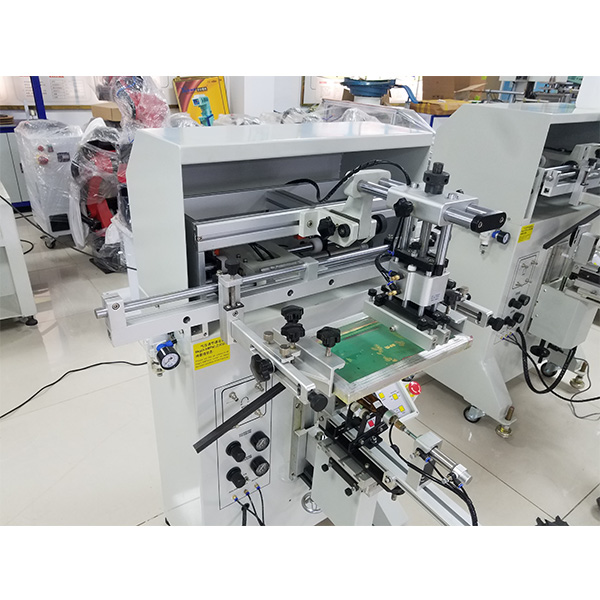

APM-S250 Semi-auto screen printing machine for flat round oval bottle

S250 semi-automatic bottle and container screen printer is a well designed and versatile machine. The S250 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

The S250 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the S250 the perfect all around universal screen printing press.

Product Information

S250 semi-automatic bottle and container screen printer is a well designed and versatile machine. The S250 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

The S250 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the S250 the perfect all around universal screen printing press.




Standard Features:

1.Electro-pneumatic controlled

2.Programmable set-up

3.Pneumatic controlled with shock absorbers

4.Vertical head lift with up/down lock

5.Linear ball bearings on hardened shafts

6.Foot switch controlled

7.Squeegee tilt, skew, and height adjustments

8.Screen frame angle adjustment

9.Universal fixture bar for mounting custom tooling

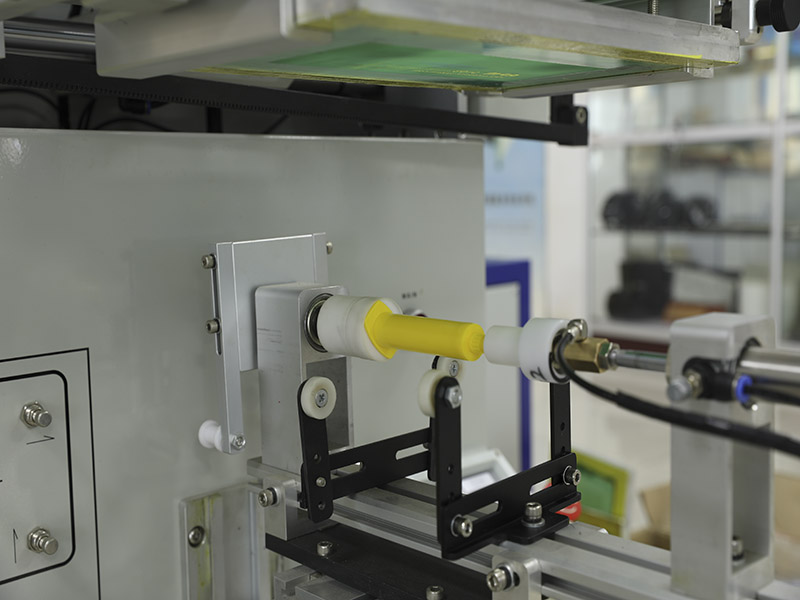

10.Bottle inflation system with regulator

11.Bottle inflation is synchronized with print cycle

12.Regulated squeegee pressure with pressure gauge

13.Floor levelers & casters

14.Emergency stop button installed, safety guarding is optional


Machine Specifications:


Model Number:

S250

Drive System:

Pneumatic

Frame Up/Down Stroke:

100mm (3.94")

Maximum Print Area Round:

Minimum Print Area Round:
Maximum Print Area Oval:
Maximum Print Area Flat:

75mm (2.95") Ø

15mm (0.59) Ø
230mm (9.06") Arc Length
150 x 220mm (5.91" x 8.66")

Working Table Size:

200 x 300mm (7.87" x 11.81")

Table Adjustment:

X,Y ± 15mm / θ 15 °

Maximum Screen Frame Size:

280 x 430mm (11.02" x 16.93")

Screen Frame Thickness:

18 - 25mm (.71" - .98")

Squeegee Angle:

0-15°

Printing Cycle Speed:

1,980 cycles/hr

Squeegee Speed:

33/min

Squeegee Pressure:

2 - 4 Bar

Electric Source:

110V/220V 50-60Hz 50W

Air Pressure Input:

80 psi

Air Consumption:

0.7 L/cycle

Machine Weight:

135 kg (297.62 lbs)

Machine Weight (including crating):

205 kg (451.95 lbs)

Dimensions (L x W x H):

850 x 830 x 1,280mm (33.46" x 32.68" x 50.39")

Crate Dimensions:

980 x 870 x 1,410mm (38.58" x 34.25" x 55.51")
