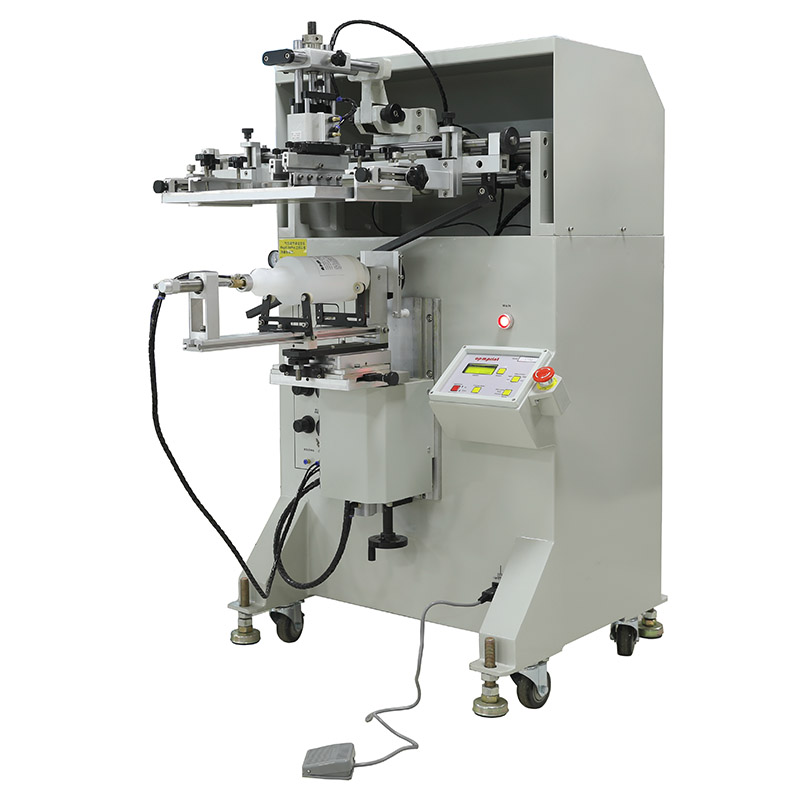

APM-S350 Semi-auto flat round oval bottle screen printing machine

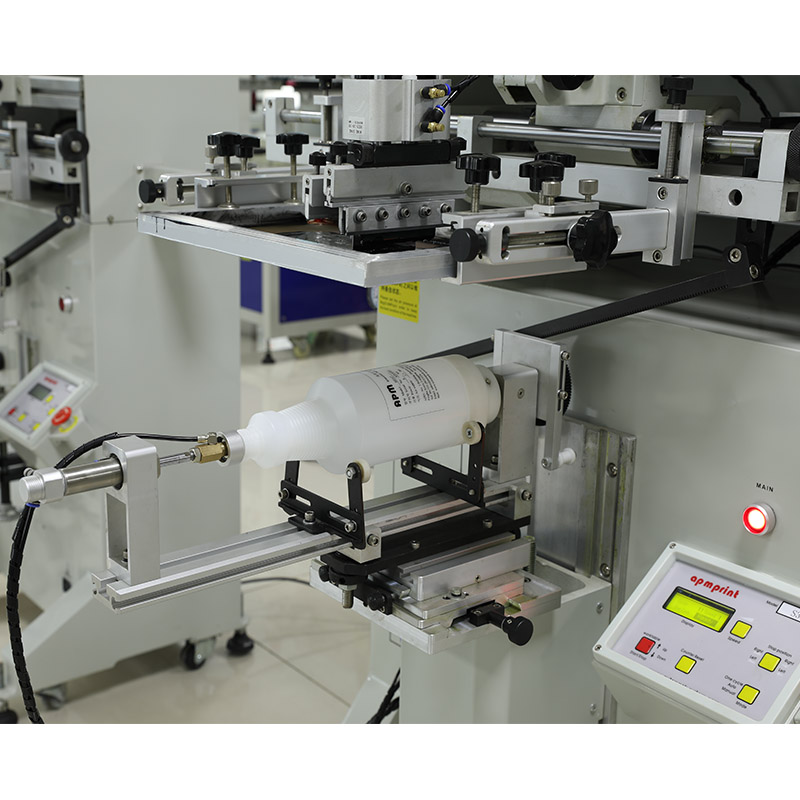

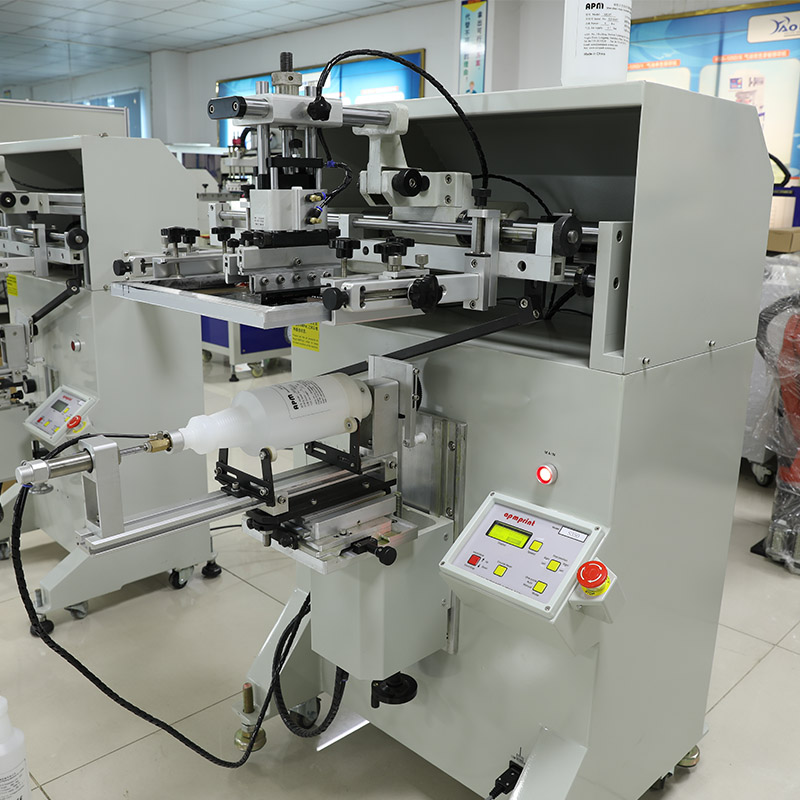

S350 semi-automatic bottle and container screen printer is a well designed and versatile machine. The S350 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc. The S350 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the S350 the perfect all around universal screen printing press.
Product Information

S350 semi-automatic bottle and container screen printer is a well designed and versatile machine. The S350 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc. The S350 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the S350 the perfect all around universal screen printing press.




Standard Features:

1.Pneumatic controlled with shock absorbers

2. Microprocessor controlled - PCB

3.Vertical part lift with height adjustment

4.Print stroke controlled with rodless cylinder

5.X/Y/R positioning ware-mounting table

6.Linear ball bearings on hardened shafts

7.Squeegee tilt, skew, and height adjustable

8.Screen frame angle & tilt adjustable

9.Synchronized bottle inflation system with regulator

10.Regulated squeegee pressure with pressure gauge

11. Floor levelers & casters

12.Foot switch controlled


Machine Specifications:

Model Number:

S350

Drive System:

Pneumatic

Frame Up/Down Stroke:

100mm (3.94")

Maximum Print Area Round:
Maximum Print Area Oval:
Maximum Print Area Flat:

110mm (4.33") Ø

340mm (13.39") Arc Length

200 x 320mm (7.87" x 12.60")

Working Table Size:

250 x 350mm (9.84" x 13.78")

Table Adjustment:

X,Y ± 15mm / θ 15 °

Maximum Screen Frame Size:

380 x 580mm (14.96" x 22.83")

Screen Frame Thickness:

18 - 25mm (.71" - .98")

Squeegee Angle:

0-15°

Printing Cycle Speed:

1,200 cycles/hr

Squeegee Speed:

20/min

Squeegee Pressure:

2 - 4 Bar

Electric Source:

110V/220V 50-60Hz 50W

Air Pressure Input:

80 psi

Air Consumption:

0.7 L/cycle

Machine Weight:

150 kg (330.69 lbs)

Machine Weight (including crating):

230 kg (507.06 lbs)

Dimensions (L x W x H):

1,000 x 950 x 1,400mm (39.37" x 37.4" x 55.12")

Crate Dimensions:

1,080 x 1,010 x 1,520mm (42.52" x 39.76" x 59.84")
