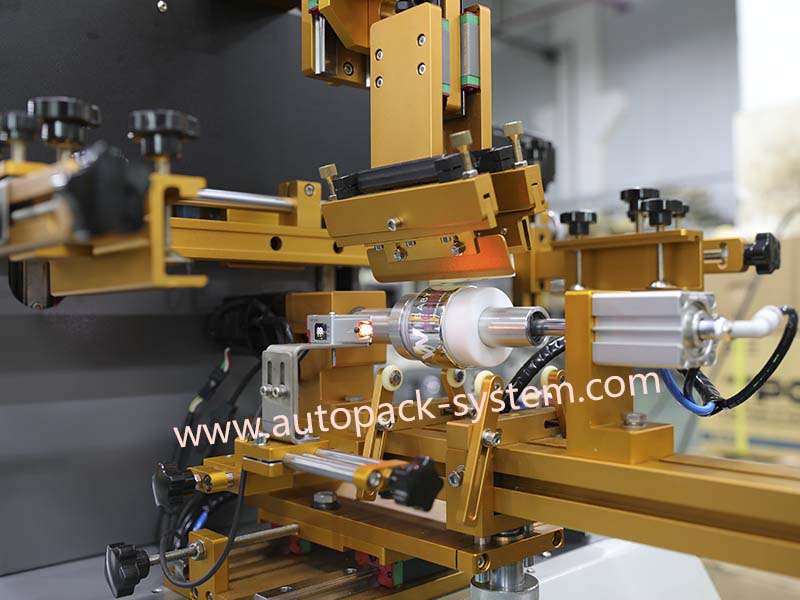

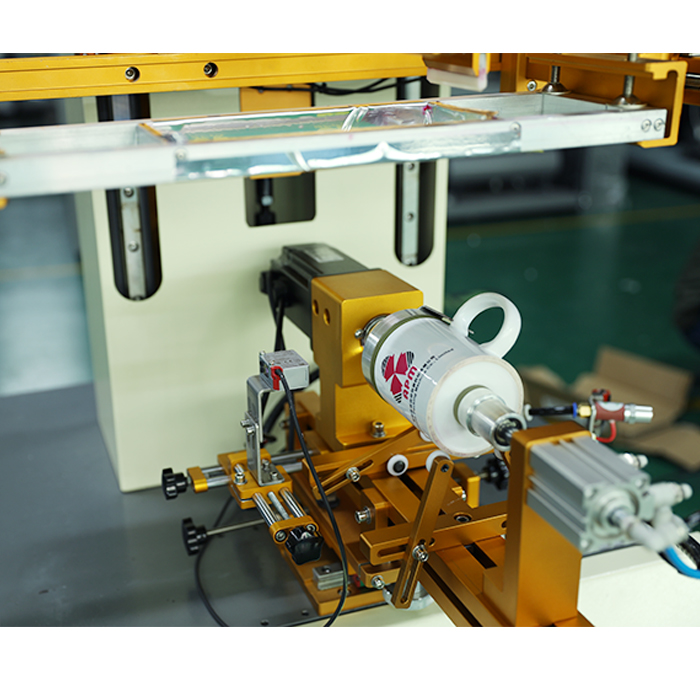

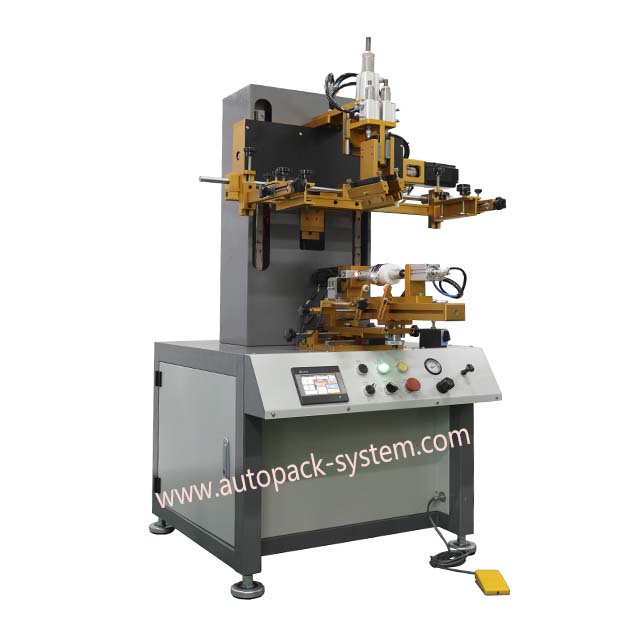

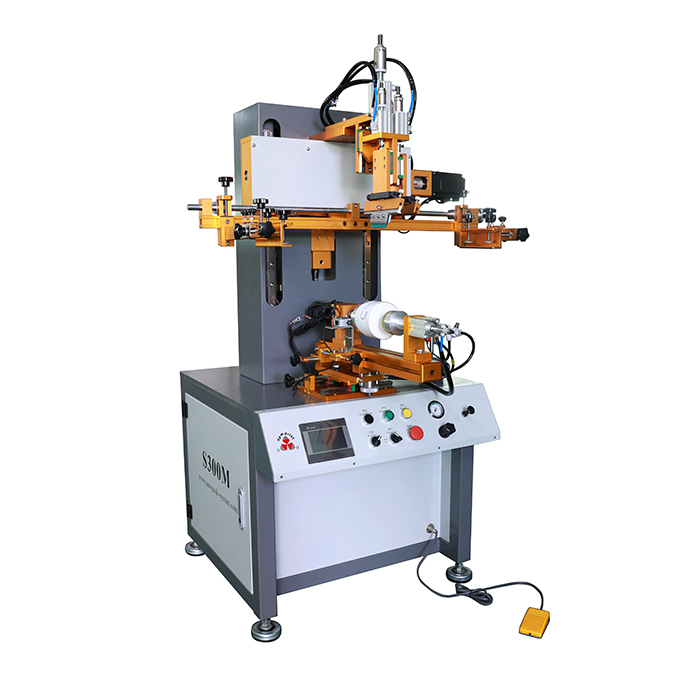

APM-S300M Single color servo screen printer

 Print soft tubes, bottles, jars

Product Information

Tech-data:

Parameter \ Item

S300M

Max. mesh frame size

400*550mm

Max.printing size

dia.70mm

Max.substrate diameter

100mm

Printing speed

1380pcs/H

Power

110/220V 50/60HZ 40W





Application:

Soft tubes, bottles, jars


General Description:

1. Servo motor driven mesh frame left/right and servo driven fixture rotate

2. PLC control and Touch Screen display

3. Easy operation, can set the product diameter, speed, printing position in touch screen

4. No need gear, easy change products

5.High quality optical sensor registration

6. Inflation for soft bottles
