Application:

Stationery board

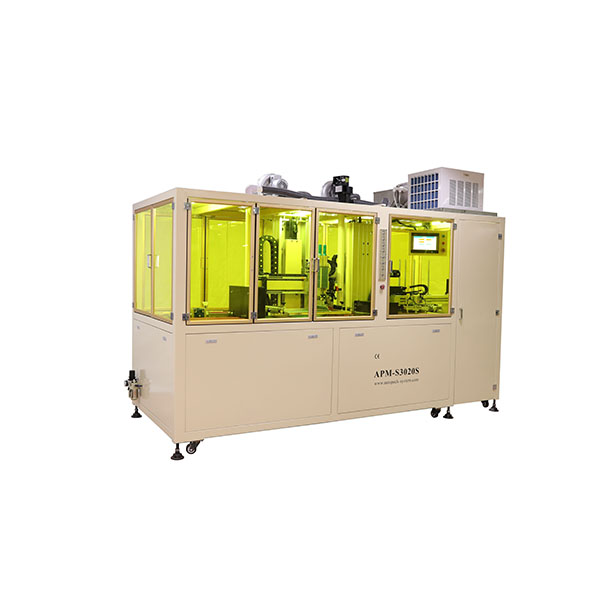

Description:

1. Auto loading rack (products drop from downside to fixture)with 500mm height.

2. Auto dust clean with exhaust before each color printing, total 2 dust clean

3. Fixture with vacuum

4. PLC control, Touch screen display

5. Servo motor driven: mesh frame up/down, printing

6. UV drying after each color printing (Use UV ink)

7. Auto unloading and pile up (height: 500mm)

 Tech-data：

Printing colors: 2

       Max. and min. product size: 318 x 218 mm and 237 x 172.5 mm

       Max. and min. product thickness :  2.5mm and 1.4mm.

Max.frame size: 380x600mm

Max.printing speed: 600~750pcs/hr

Air pressure: 6~8bars

Power supply : 3phase, 380V, 50Hz

Dimension(LxWxH): 3500x1500x2100mm

Weight: 2500KG
