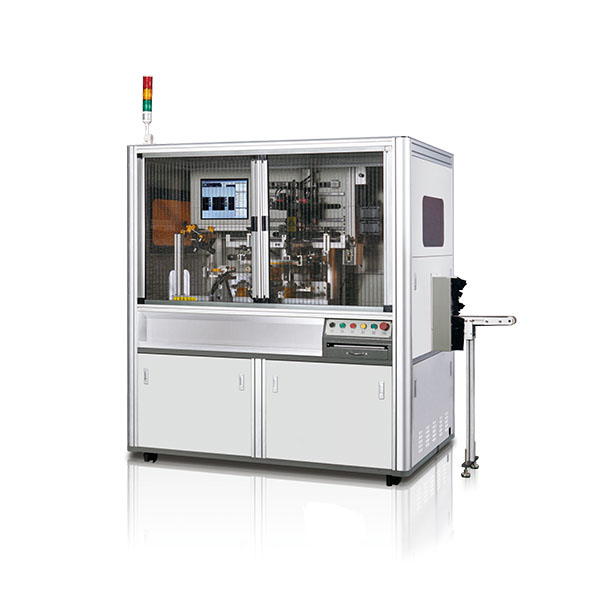

APM-CNC102TP Single color servo driven screen printer with thermoplastic Ink printing


All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.

Product Information


Application :

All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.



General Description

1. Automatic loading system with multi axis servo robot. Bottle standing on belt.

2. Servo driven transfer system.

3. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.

4. Multi sides printing in one process.

5. Super quick and easy change over from one product to another.

7. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.

8. Automatic unloading with servo robot. Bottle standing unloading.

9. Safety operation with CE.

10. Repeat print to be multi colors.



Optional:

Flame pre-treatment system

LED UV or electric UV system optional

Additional module up to 10 units, to be multi colors production line.

Camera vision system, for cylindrical products without registration point. Repeat print to be multi colors.

We can change screen printing head to be hot stamping machine.



Tech-data:

speed

1200-2400pcs/H

power

380V, 3P 50/60Hz

Air supply

6-8Bar



Round Container

Printing Dia.

20-100mm

Printing Length

30-180mm



Square/Irregular container

Printing Width

20-100mm

Printing Length

30-180mm




Samples:


Video:
