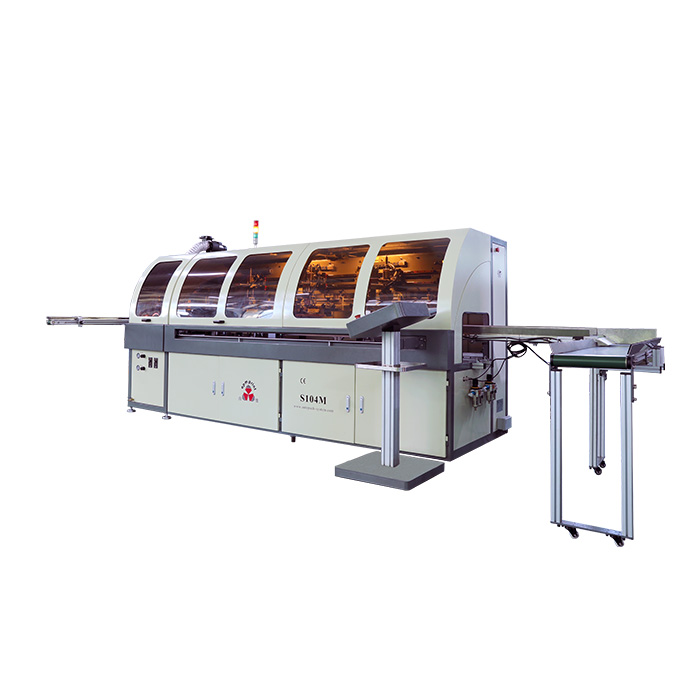

APM-S104M Automatic multicolor cylindrical screen printer



The APM-S104M is designed for cylindrical glass/plastic/metal bottles and cups printing.

It is capable of printing multicolor on round containers without color registration point.


Product Information



Application:

The APM-S104M is designed for cylindrical glass/plastic/metal bottles and cups printing.

It is capable of printing multicolor on round containers without color registration point.



General Description:

1. Servo motor registration.

2. Auto loading.

3. Auto unloading.

4. Only one fixture, easy to change product.

5. Can print multicolor on cylindrical bottles without color registration point.

6. UV ink or hot melted ink printing optional.

7. For UV ink printing, after each color printing, the product will come back to

8. LED UV system to be dried, then will go for the next color printing.




Tech-data:

Product shape

Round

Max. printing dia.

100mm

Max. printing length

320mm

Printing speed

400-600pcs/H

Power supply

380V. 3P 50/60Hz

Air supply

5-7Bar

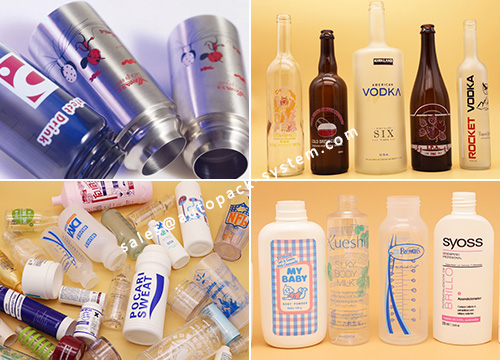

Samples:



Video:
