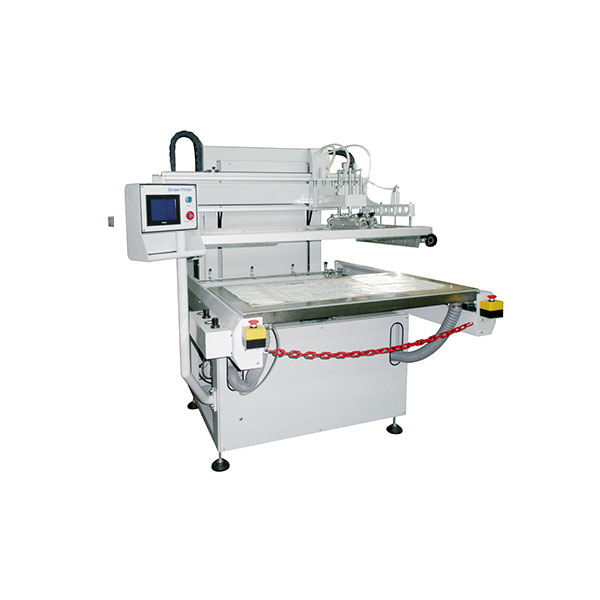

APM-S6080S /S70100S/S90120S Flat Screen Printer With Sliding Table

Product Information


Description:

1. SMC/Festo pneumatics

2. XYR adjusting table

3. Pneumatic printing head lifting system

4. Printing head driven by motor with linear guides

5. Printing head up/down driven by motor

6. Mesh peeled off system

7. Easy operation and well programmed panel

8. Well safety guarding with CE.



Option:

1. Automatic unloading with robot and belt transfer system

2. PLC control, touch screen display



Tech-data:

Parameter \ Item

S6080S

S70100S

S90120S

Max.mesh frame size(mm)

900*1200

1000*1400

1200*1600

Max.printing area(width*length/arc)mm

600*800

700*1000

900*1200

Worktable size (mm)

700*1000

800*1200

1000*1400

Table sliding stroke (For S6080S)

700mm

800mm

1000mm

Max.substrate diameter/height(mm)

150

150

150

Printing speed:pcs/hr

800

700

500

Net.weight (kgs)

450

550

800

Power

110/220V 50/60HZ  40W
