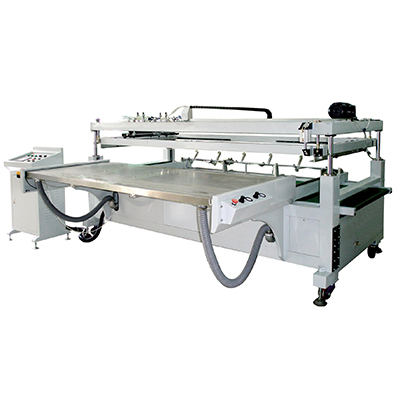

Description:
1. SMC/FESTO pneumatics
2. XYR adjusting table
3. Synchronized printing head lifting system
4. Printing head driven by motor with high quality linear guides
5. Mesh peeled off system
6. PLC control, touch screen display
7. Well safety guarding with CE.
8. Sliding table driven by motor with high quality linear guides
9. Automatic unloading with robot and belt transfer system (optional)
10. Auto register pins for multi color printing (optional)
Tech.Data:
|
Model |
S1218S |
S1530S |
S2030S |
|
Max.printing area |
1200×1800mm |
1500×3000mm |
2000×3000mm |
|
Max.frame size |
1700×2400mm |
2000×3700mm |
2500×3700mm |
|
Table size |
1500×2200mm |
1800×3400mm |
2300×3400mm |
|
Max speed |
500p/h |
400p/h |
300p/h |
|
Product thickness |
3～15mm |
||
|
Tolerance |
±0.03mm |
||
|
Air pressure |
0.5～0.6Mpa |
||
|
Power |
3P 380v/5kw |
3P 380v/6kw |
3P 380v/7kw |
