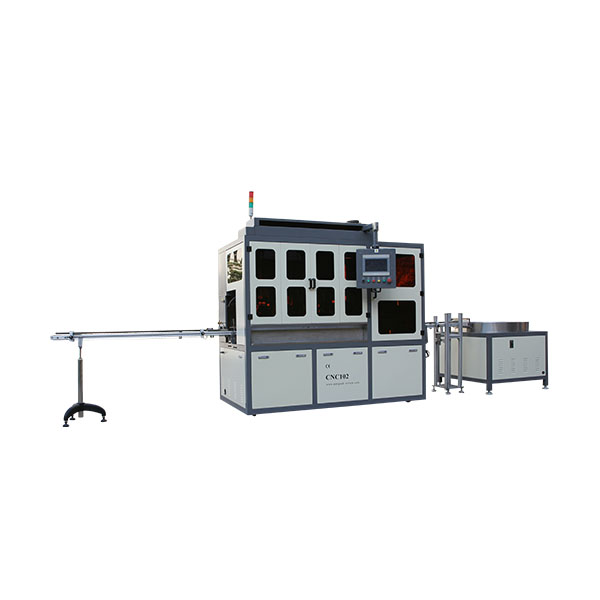

APM-CNC102-FUV Single color servo driven screen printer (With flame and UV drying)


All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.

Product Information


Application :

All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.


General Description

1. Automatic loading belt. (Customized loading system optional with extra charge)

2. Auto flame treatment

3. Servo driven transfer system.

4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.

5. Multi sides printing in one process.

6. Electric UV system (LED UV drying optional)

7. Super quick and easy change over from one product to another.

8. All parameters automatic setting simply in touch screen.

9. Automatic unloading belt

10. Safety operation with CE.

11. Repeat print to be multi colors.



Optional:

Camera vision system, for cylindrical products without registration point. Repeat print to be multi colors.

We can change screen printing head to be hot stamping machine.



Tech-data:

speed

20-40pcs/min

power

380V, 3P 50/60Hz

Air supply

6-8Bar



Round Container

Printing Dia.

20-100mm

Printing Length

30-180mm



Square/Irregular container

Printing Width

20-100mm

Printing Length

30-180mm

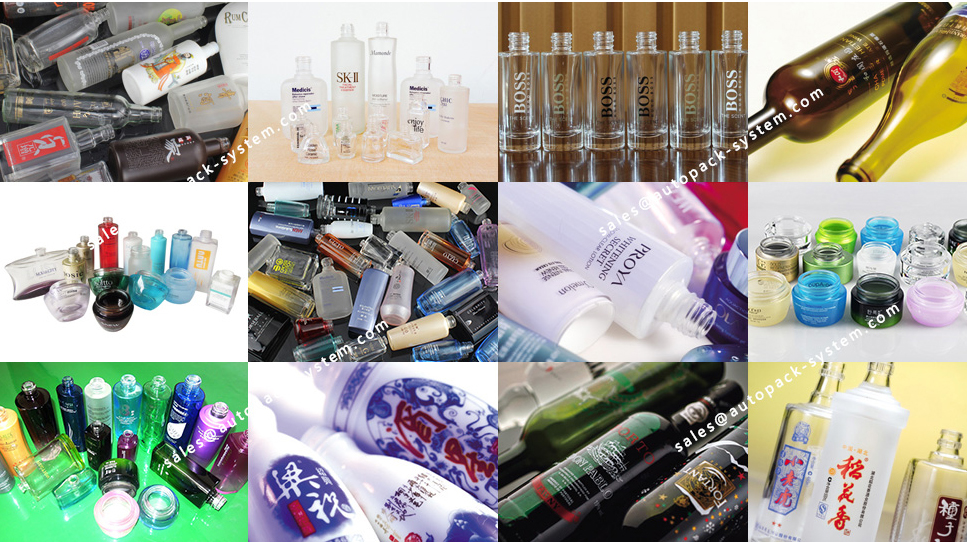

Samples:
