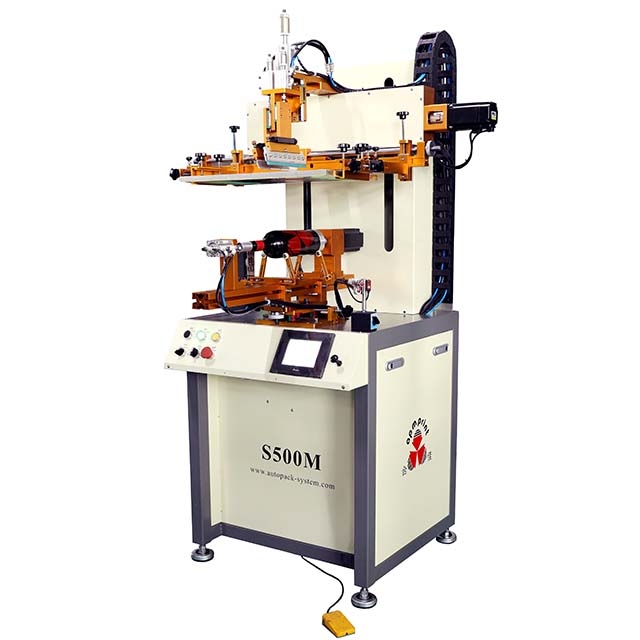

Print soft tubes, bottles, jars
Application:
Soft tubes, bottles, jars
General Description:

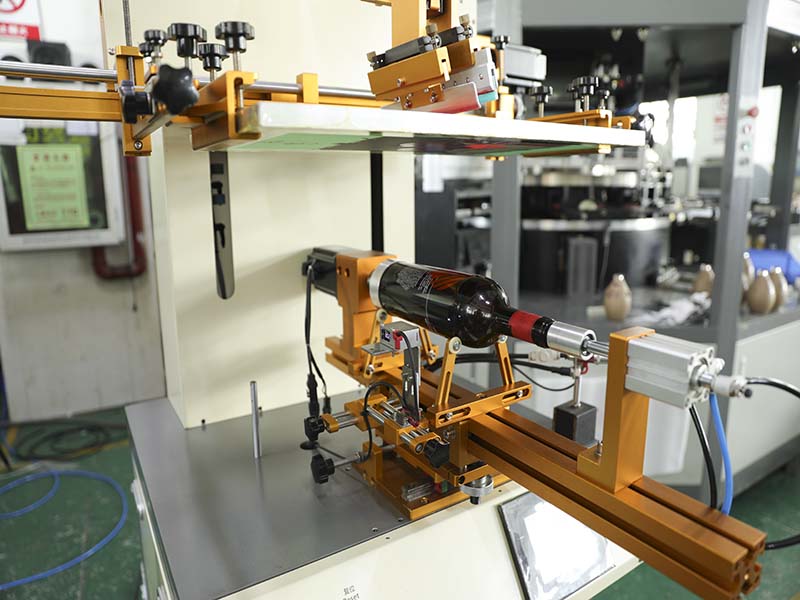

1. Servo motor driven mesh frame left/right and servo driven fixture rotate
2. PLC control and Touch Screen display
3. Easy operation, can set the product diameter, speed, printing position in touch screen
4. No need gear, easy change products

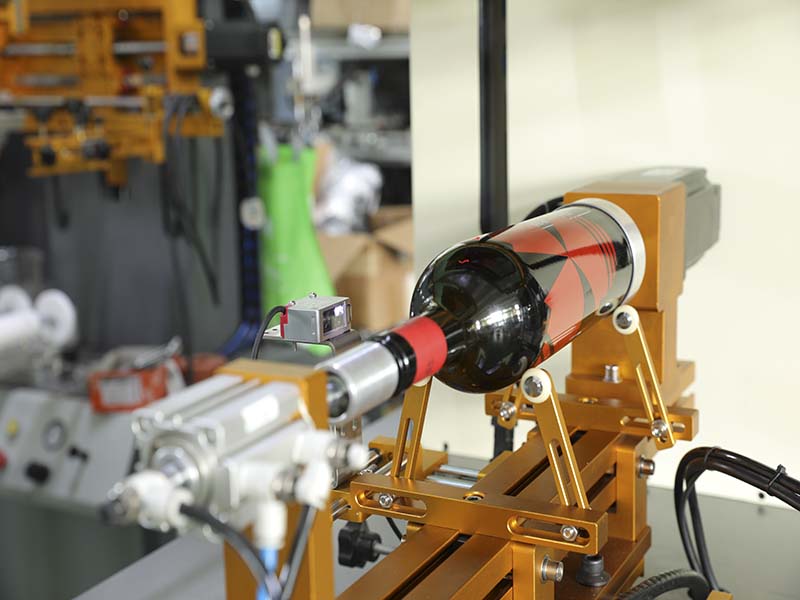

5. Optical sensor registration
Tech-data
|
Max. printing size |
250(W)*500(L)mm |
|
Max. product height |
330mm |
|
Max. product diameter |
150mm |
|
Max. mesh frame size |
600*500*35mm |
|
Air supply |
0.6Mpa(6bar) |
|
Power supply |
220V/110V 50Hz/60Hz 2.7KW |
|
Machine size |
1000mm*1300mm*1600mm |
