Application:
Straight rulers, right triangle rulers, regular triangle rulers, protractors and so on.
Different rulers print at the same time or multi prints at the same time.
(Different solution with different loading system, unloading system and fixtures)
Description:

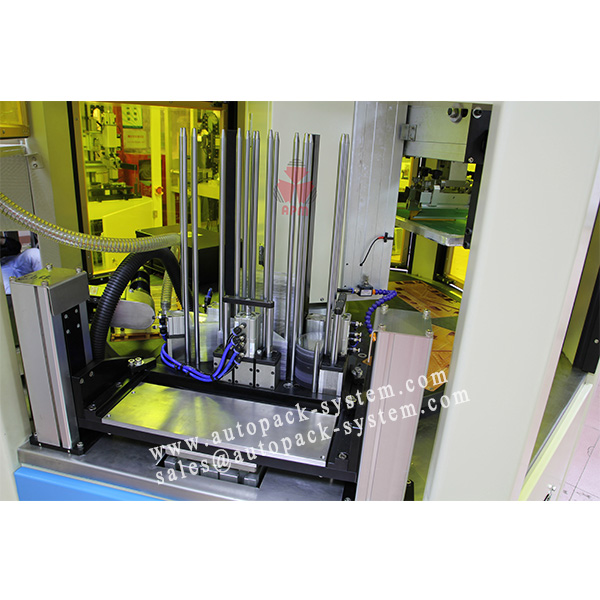

1. Auto loading rack for 4 kinds of rulers, other racks optional

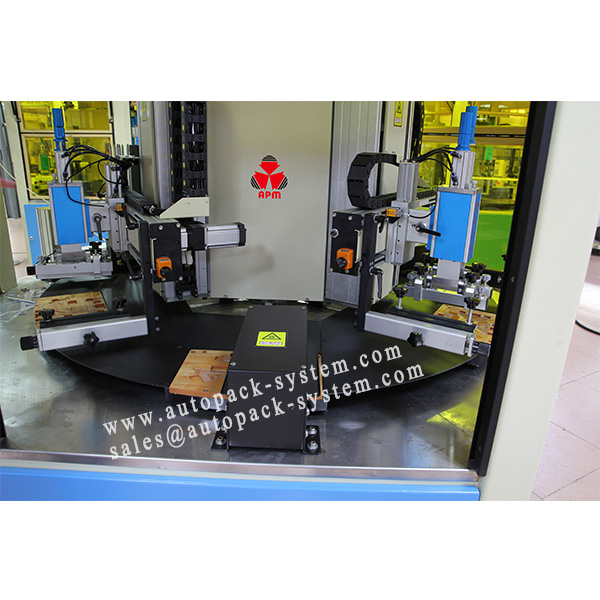

2. 6 station indexer

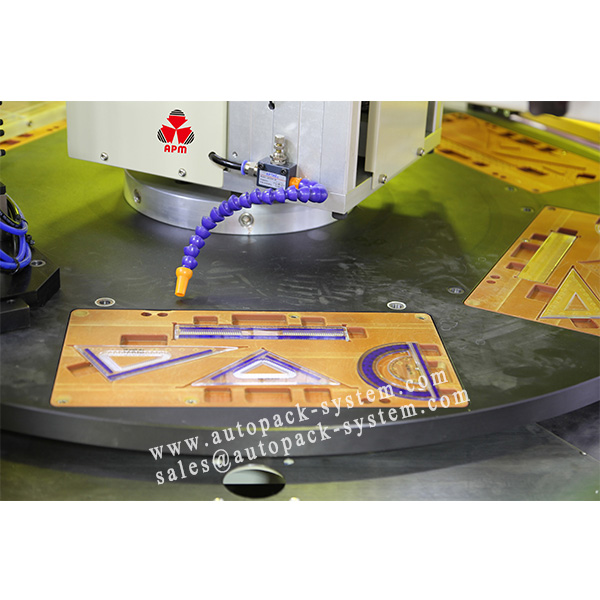

3. Fixture with vacuum
4. PLC control, Touch screen display

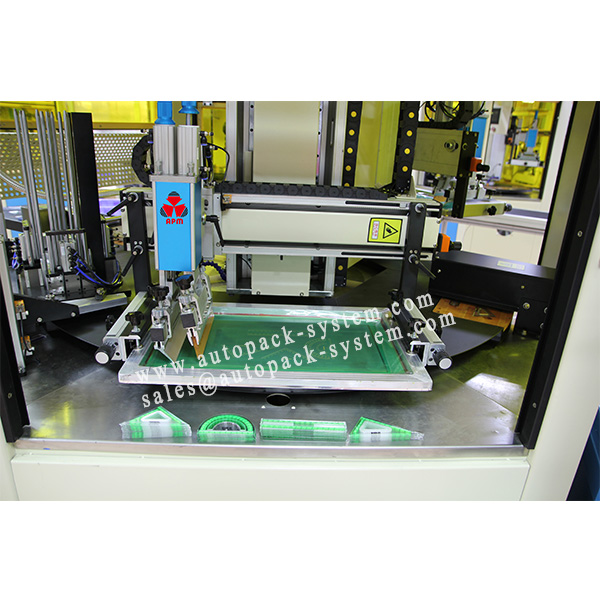

5. All servo motor driven: mesh frame up/down, printing, indexer, registration
6. Color registration tolerance: +0.05mm
7. Multi prints at the same time
8. LED drying after each color printing

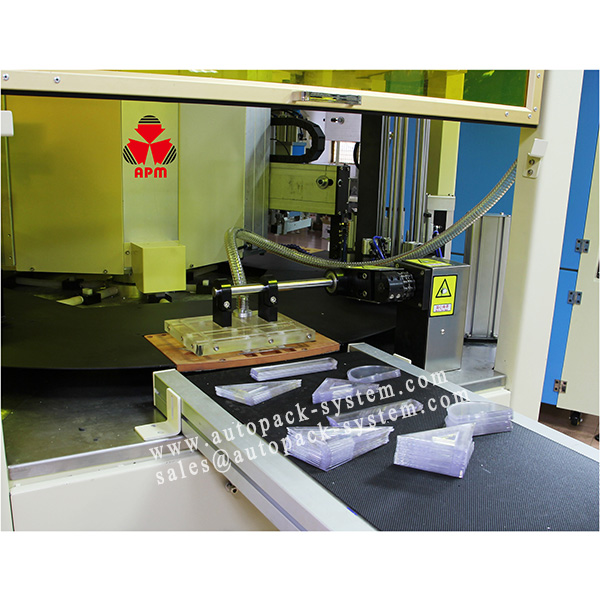

9. Auto unloading belt with robot
10. Well safety protection with CE.
Tech-data：
Printing colors: 2
Max.printing size: 200x300mm
Max.frame size: 250x500mm
Indexer station: 6 stations
Max. printing speed: 4000~4800pcs/hr
Air pressure: 6bars
Power supply : 3phase, 380V, 50Hz
Power: 9.5KW
Dimension(LxWxH): 1750x1750x1800mm
Weight: 1950KG
