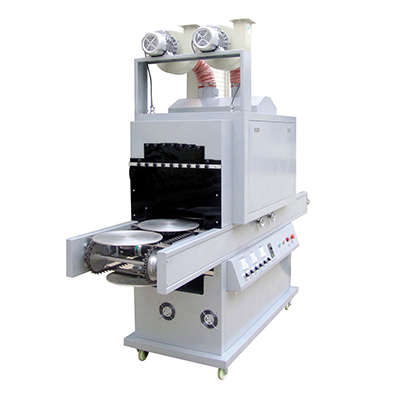

Description:
1. 1.High quality Primarc UV system, total 3 sets of UV system in the tunnel.
2.Round pallets installed on the conveyor with auto rotation inside the UV tunnel.
3. Conveyor speed and the distance between the lamp and substrate can be adjusted.
4．Temperature sensor installed to prevent the machine from overheated.
5. Excellent curing result, reliable quality, CE standard and easy operation.
Tech-data:
|
|
UV500R |
|
Max substrate width |
300mm |
|
Max. substrate height |
25-250mm |
|
Diameter of the substrate |
10~150mm |
|
Diameter of the pallet |
450 mm |
|
Max curing speed |
1500-3000pcs/h |
|
Power supply |
5.8KW x 3 |
|
Measurement |
2600*680*1880（L*W*H） |
|
Net weight |
380kgs |
