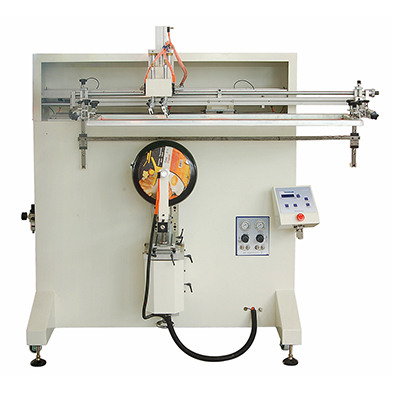

General Description:
1. SMC pneumatic parts, ensure stable running.
2. LCD panel showing all parameters. Easy operation and programmable.
3. X, Y direction and angle of worktable adjustable, easy to do accurate positioning and color registration.
4. T-slot, flat with vacuum, round and oval functions available and easy convertion.
5. Automatic squeegee balancing ensures equal printing pressure and stable printing quality.
6. Printing stroke and speed adjustable to meet different requirement of printing.
7. Easy mesh frame adjustment for conical printing
7. CE standard machines
Tech-data:
|
Parameter \ Item |
S1200 |
|
Max. mesh frame size(mm) |
700X1500mm |
|
Max. oval printing area |
R170×400mm |
|
Max. round printing area |
Ø380×400mm |
|
Max. printing area |
1200×400mm |
|
Max. substrate diameter/height(mm) |
400 |
|
Measurement(mm)（L×W×H） |
1870×850×1665mm |
|
Packing Measurement(mm) （L×W×H） |
1970*950*1815 |
|
Weight |
400kg |
|
Max. printing speed (pcs/hr) |
400pcs/hr |
|
Power |
AC110V/220V 50/60Hz 50W |
|
Max. conical |
5° |
