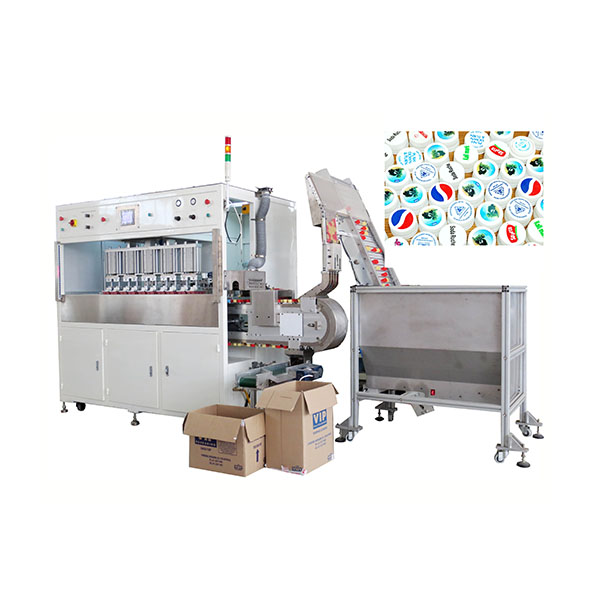

CAP88 Caps Master is a fully automatic pad printing system for caps printing. It is combined with auto loading, caps locking, flame treatment, printing, drying and unloading all in 1 system. Easy setting up, fast and durable running makes Caps Master a stable and economic solution for caps printing.
Application:
Beverages caps, wine caps, medicine caps, oil caps
Description:
Automatic loading with hopper and mechanical loading system
Auto flame treatment with electric ignition and air exhausting system
1-4 colors printing, servo driven head
Auto pad cleaning for better printing quality
Automatic heating system after printing to dry the caps
Servo driven conveyor, conveyor chain made inJapanwith best accuracy
Auto unloading
Well built machine closure
Safety operation with CE standard
PLC control, touch screen display
Tech-data:
|
|
Plate size |
1~4 Colors |
Max Speed (pcs/h) |
|
CAP88 |
200x200mm |
1 color |
45000pcs/hr for28mmcaps |
|
2 color |
30000pcs/hr for28mmcaps |
||
|
3 or 4 color |
10000-20000pcs/hr for28mmcaps |
