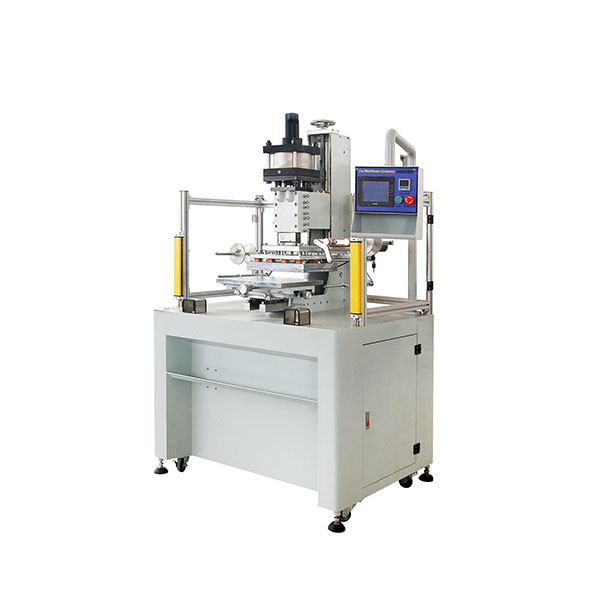

Description:
1. Strong pressure with hydraulic system.
2. Stamping pressure, temperature and speed adjustable.
4. XYR adjusting worktable.
5. Auto foil feeding and winding.
6. The height of stamping head can be adjusted.
7. Pressing delay time, winding delay time adjustable
8. Dual light palm buttons
9. 3-sided guarding for safety operation
10. Auto sliding in/out worktable
11. Light curtain for safety operation
12. PLC control, touch screen display
Tech-data:
|
Model |
HH400-5T |
HH400-10T |
HH600-5T |
HH600-10T |
|
Max stamping area |
300×400mm |
400x600mm |
||
|
Worktable Size |
350×450mm |
450x650mm |
||
|
Stamping Head Stroke |
80mm |
|||
|
Max. article Height |
250mm |
|||
|
Temperature |
Room Temperature~280℃ |
|||
|
Stamping Pressure |
5000kgf |
10000kg |
5000kgf |
10000kgf |
|
Max. Stamping Speed |
400pcs/hr |
300pcs/hr |
350pcs/hr |
250pcs/hr |
|
Air Pressure |
4~7bar |
|||
|
Power Supply |
380V 60Hz/50Hz 3 phases |
|||
|
Heating Power |
8000W |
10000W |
||
|
Weight |
600kgs |
800kgs |
900kgs |
1000kgs |
